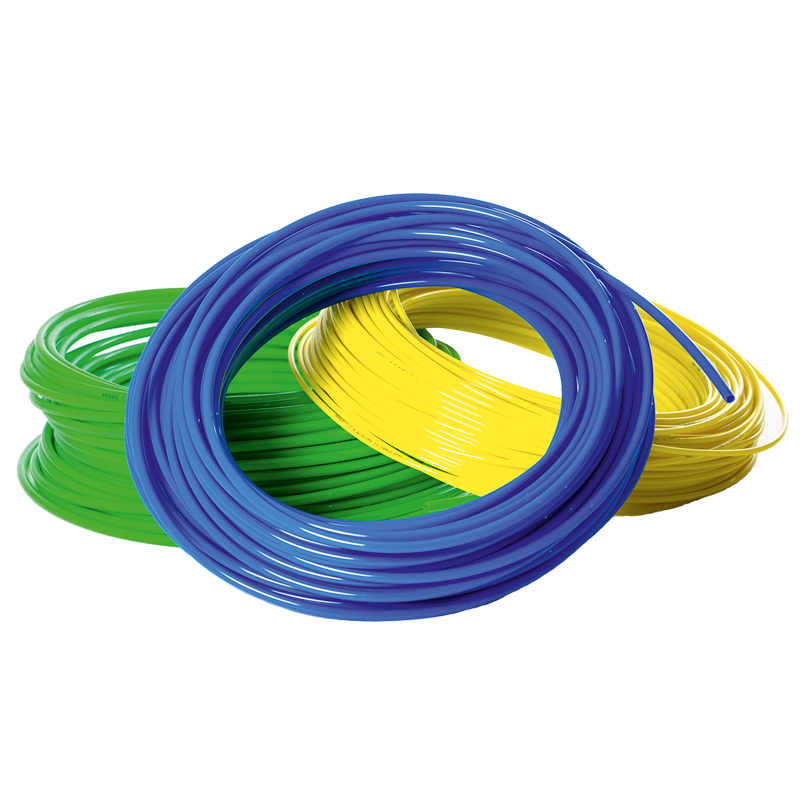

ToppTube™ PA11

Flexible pressure-resistant tubes for pneumatic and hydraulic applications, as well as for grease lubrication.

Superior in high temperature applications.

  • Good impact resistance
  • Excellent abrasion resistance
  • PA11 hard quality
  • PA11P40 semi-hard quality
  • PA11F15 soft quality

Specification

Material: Polyamide PA11 (Nylon 11) Rilsan®
Hardness: PA11 70 Shore D, PA11P40: 63 Shore D, PA11F15: 52 Shore D
Installation Temperature: -20 °C…+50 °C
Working Temperature: -40 °C…+80 °C
Operating Pressure: 4,0 bar…135 bar (depending on tube dimensions and temperature)
Tolerances: According to DIN 74324
Colours: Natural, black, blue, yellow, red, green, silver, etc.
Dimensions: Outer diameter 3,0 mm…28,0 mm x inner diameter 2,0 mm…24,0 mm
Chemical Resistance: PA tubes have good chemical resistance against oils, hydraulic fluids, and fuels
